Note:

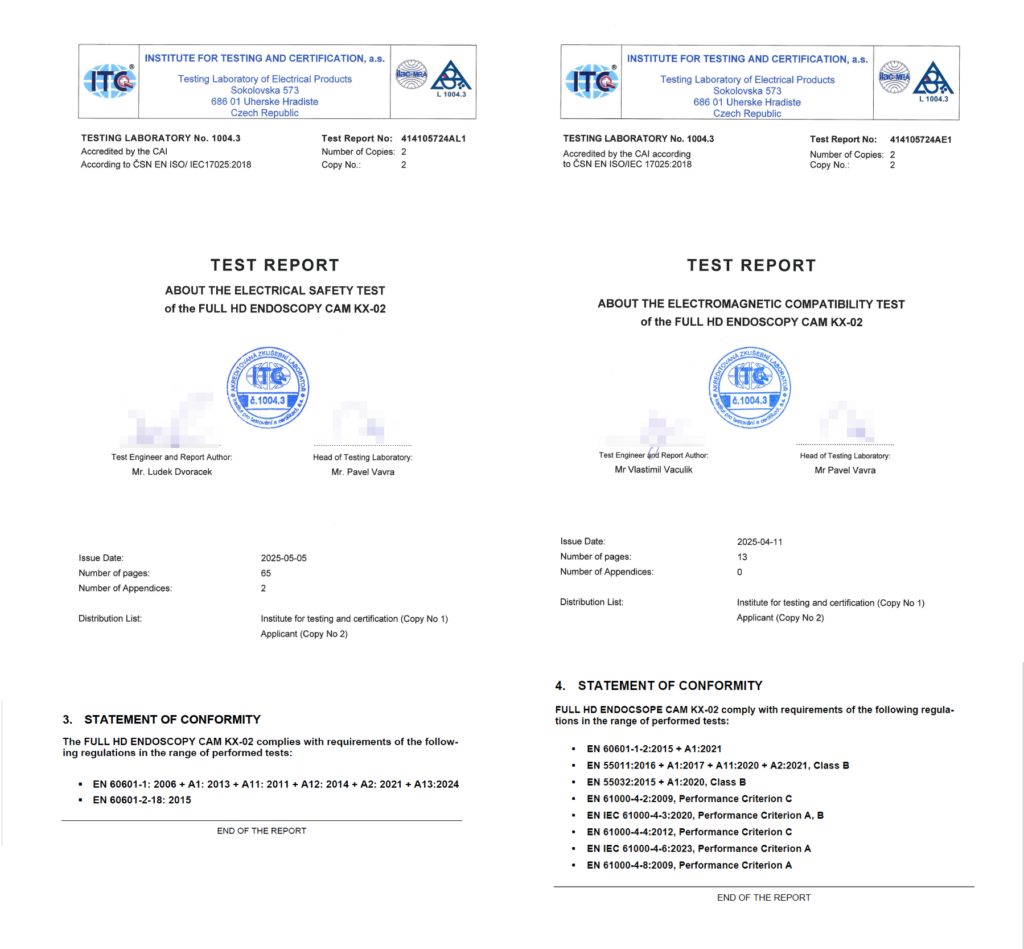

Camera KX-02 is currently under certification process and will hit the market in Q2 2025.
This camera has 3 basic advantages (+1 optional) to camera KX-01:
1) the camera contains a fluid lens
2) the camera has 3 programmable buttons on it
3) the camera has functional resolution of 4k camera
4) the camera can do (optionaly) stroboscopy without strobo light source.
Autofocus
The most important feature of KX-02 camera is autofocus. We utilized 2 versions:
1) focus on demand to the center
2) focus according to the gaze (with face tracking)
Autofocus + No-Flash-Strobo
Lets continue with the optional feature. The camera allows one to do stroboscopic examination of the vocal chords.
Our configuration: Storz laryngoscope 10mm/90degree, Vimex LV-400LED.
Original video in full resolution can be found here.
Resolution
Maximal resolution of the camera is 2440×2048 pixels. 4K resolution is 3840×2160 pixels. But the shape of the endoscope’s ocular is round. if you want to see everything that is visible in the eyepiece, you effectively use only 2160×2160 pixels. And our resolution is 2048×2048 pixels, which is 5% less. Please check our gallery.
Our configuration: Storz laryngoscope 10mm/90degree, Schindler UHD Zoom coupler, portable light source Machida.
